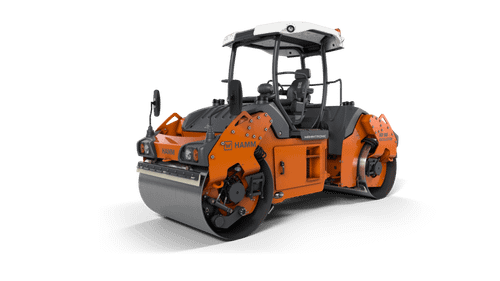

HD+ 80i VO-S Tandem Roller with Vibration and Oscillation Drum #HD_80i_VO-S

{"brochure_or_stock":"Availability|Available for Order","promoted_feature_entity_attribute":"Promoted Features|RDO Promise","sku":"SKU|HD_80i_VO-S","model":"Model|HD+ 80i VO-S","feature_bullet_1":"Feature 1|Compaction with oscillation","feature_bullet_2":"Feature 2|Track offset for comfortable starting and driving away and compacting at curbsides","feature_bullet_3":"Feature 3|Simple, intuitive and language-neutral control","feature_bullet_4":"Feature 4|Excellent view of machine and construction site","product_brochure_url":"Product Brochure PDF URL|https://www.wirtgen-group.com/binary/full/o8733v83_HD_80i_VOS_H186_enUS.pdf","spec_notab_clustered_specs":"Specifications|

Basic data

Series: HD+
Name: HD+ 80i VO-S
Description: Tandem roller with vibration and oscillation drum
Exhaust emissions category: EU Stage IIIB / EPA Tier 4
Series: H186

Weights

French classification, value/class: 17,5/VT0
Max. operating weight: 22,932 lbs
Operating weight with ROPS: 17,155 lbs
Operating weight with cab: 17,530 lbs
Static linear load, rear: 128.8
Static linear load, front: 136.1 lbs/in

Machine dimensions

Total length: 176.4 in
Total width with cab: 70.9 in
Maximum working width: 71.5 in
Total height with cab: 113.8 in
Center distance: 131.5 in
Ground clearance, center: 13.4 in
Turning radius, inside: 163 in
Total height with ROPS: 116.9 in
Height loading, min.: 81.9 in
Curb clearance, rear: 29.5 in
Curb clearance, left: 29.5 in

Drum dimensions

Drum type, front: Smooth/split
Drum type, rear: Smooth/non-split
Track offset, left: 5.3 in
Drum thickness, rear: 0.8 in
Drum thickness, front: 0.7 in
Drum diameter, rear: 44.9 in
Drum diameter, front: 44.9 in
Drum width, rear: 66.1 in
Drum width, front: 66.1 in

Diesel engine

Model: TCD 2.9 L4
Cylinders, quantity: 4
Exhaust emission standard: EU Stage IIIB / EPA Tier 4
Exhaust gas after-treatment: DOC
Power ISO 14396, rpm: 2,200 rpm
Power ISO 14396, HP: 75.3 HP
Power ISO 14396, kW: 55.4 kW
Power SAE J1349, rpm: 2,200 rpm
Power SAE J1349, HP: 74.2 hp
Power SAE J1349, kW: 55.4 kW

Travel drive

Regulation, infinitely variable: HAMMTRONIC
Speed, transport gear: 0,0-5,9
Climbing ability, without vibration: 40 %
Climbing ability, with vibration: 35
Speed, working gear, I: 0,0-4,0

Oscillation

Oscillation force, rear, II: 22,050 lbs
Oscillation force, rear, I: 15,750 lbs
Tangential amplitude, rear, II: 0.049 in
Tangential amplitude, rear, I: 0.049 in
Oscillation frequency, rear, II: 2,100 VPM
Oscillation frequency, rear, I: 1,740 VPM

Vibration

Centrifugal force, front, II: 14,175 lbs
Centrifugal force, front, I: 14,175 lbs
Amplitude, front, II: 0.014 in
Amplitude, front, I: 0.02 in
Vibration frequency, front, II: 3,000 VPM
Vibration frequency, front, I: 2,520 VPM

Steering

Steering, type: Articulated steering
Oscillation angle +/-: 10 °

Water-sprinkling system

Water sprinkling, type: Pressure
Fuel tank, capacity: 31.7 gal
Water tank, capacity: 184.9 gal

Tank capacity/filling capacity

Fuel tank, capacity: 31.7 gal
Water tank, capacity: 184.9 gal

Sound level

Acoustic power LW(A), measured: 105 db(A)
Sound power level L(WA), guaranteed: 106"}
