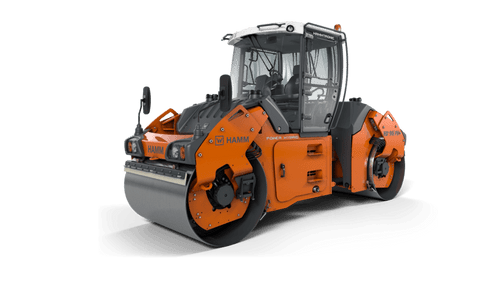

HD+ 90i PH VV Tandem Roller with Two Vibrating Roller Drums #HD_90i_PH_VV

{"brochure_or_stock":"Availability|Available for Order","promoted_feature_entity_attribute":"Promoted Features|RDO Promise","sku":"SKU|HD_90i_PH_VV","model":"Model|HD+ 90i PH VV","feature_bullet_1":"Feature 1|Hydraulic hybrid drive","feature_bullet_2":"Feature 2|3-point articulation for even weight distribution and excellent directional stability","feature_bullet_3":"Feature 3|Operating concept Easy Drive","feature_bullet_4":"Feature 4|Electronic machine management Hammtronic","product_brochure_url":"Product Brochure PDF URL|https://www.wirtgen-group.com/binary/full/o8854v83_HD_90i_PH_VV_H276_enUS.pdf","spec_notab_clustered_specs":"Specifications|

Basic data

Series: HD+
Name: HD+ 90i PH VV
Description: Tandem roller with two vibrating roller drums
Exhaust emissions category: EU Stage V / EPA Tier 4
Series: H276

Weights

French classification, value/class: 21,9/VT1
Max. operating weight: 25,931 lbs
Operating weight with ROPS: 19,955 lbs
Operating weight with cab: 20,330 lbs
Static linear load, rear: 151.8
Static linear load, front: 155.7 lbs/in

Machine dimensions

Total length: 189 in
Total width with cab: 70.9 in
Maximum working width: 72.8 in
Total height with cab: 117.3 in
Center distance: 141.7 in
Turning radius, inside: 232.3 in
Height loading, min.: 84.6 in
Curb clearance, rear: 31.5 in
Curb clearance, left: 31.5 in

Drum dimensions

Drum type, front: Smooth/non-split
Drum type, rear: Smooth/non-split
Track offset, left: 6.7 in
Drum thickness, rear: 0.7 in
Drum thickness, front: 0.7 in
Drum diameter, rear: 47.2 in
Drum diameter, front: 47.2 in
Drum width, rear: 66.1 in
Drum width, front: 66.1 in

Diesel engine

Model: TCD 2.9 L4
Cylinders, quantity: 4
Exhaust emission standard: EU Stage V / EPA Tier 4
Exhaust gas after-treatment: DOC-DPF
Power ISO 14396, rpm: 2,300 rpm
Power ISO 14396, HP: 75.3 HP
Power ISO 14396, kW: 55.4 kW
Power SAE J1349, rpm: 2,300 rpm
Power SAE J1349, HP: 74.2 hp
Power SAE J1349, kW: 55.4 kW

Travel drive

Regulation, infinitely variable: HAMMTRONIC
Speed, transport gear: 0,0-7,5
Climbing ability, with vibration: -
Speed, working gear, I: 0,0-3,7

Vibration

Centrifugal force, rear, II: 13,500 lbs
Centrifugal force, rear, I: 16,875 lbs
Centrifugal force, front, II: 13,500 lbs
Centrifugal force, front, I: 16,875 lbs
Amplitude, front, II: 0.013 in
Amplitude, front, I: 0.024 in
Vibration frequency, rear, II: 3,000 VPM
Vibration frequency, rear, I: 2,520 VPM
Vibration frequency, front, II: 3,000 VPM
Vibration frequency, front, I: 2,520 VPM
Amplitude, rear, II: 0.013 in
Amplitude, rear, I: 0.024 in

Steering

Steering, type: Articulated steering
Oscillation angle +/-: 10 °

Water-sprinkling system

Water sprinkling, type: Pressure
Fuel tank, capacity: 45.7 gal
Water tank, capacity: 200.8 gal

Tank capacity/filling capacity

Fuel tank, capacity: 45.7 gal
Water tank, capacity: 200.8 gal

Sound level

Acoustic power LW(A), measured: 103 db(A)
Sound power level L(WA), guaranteed: 106"}
