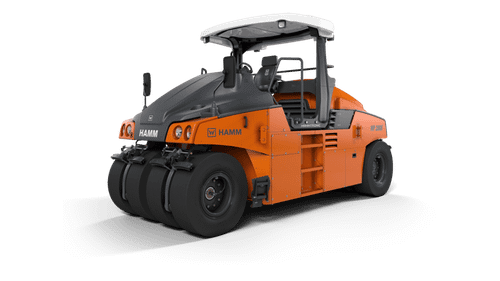

HP 280i Pneumatic-Tire Roller #HP_280i

{"sku":"SKU|HP_280i","brochure_or_stock":"Availability|Available for Order","spec_notab_clustered_specs":"Specifications|

Basic data

Series: HP
Name: HP 280i
Description: Pneumatic-tire roller
Exhaust emissions category: EU Stage V / EPA Tier 4
Series: H282

Weights

Max. operating weight: 61,674 lbs
Operating weight with ROPS: 20,551 lbs
Empty weight without cab, without ROPS: 18,224 lbs
Operating weight with cab: 20,959 lbs
Axle load, rear: 11,521 lbs
Axle load, front: 9,437 lbs
Max. wheel load per tire, rear: 6,769 lbs
Max. wheel load per tire, front: 7,731 lbs
Min. wheel load per tire, rear: 2,880 lbs
Min. wheel load per tire, front: 2,359 lbs

Machine dimensions

Total length: 195.7 in
Total width with cab: 85.3 in
Maximum working width: 82 in
Total height with cab: 118.1 in
Center distance: 153.5 in
Ground clearance, center: 11.8 in
Turning radius, inside: 244.1 in
Total height with ROPS: 117.6 in
Height loading, min.: 91.3 in

Tire dimensions

Number of tires, rear: 4
Number of tires, front: 4
Tire size, rear: 11.00-R20
Tire size, front: 11.00-R20
Width over tires, rear: 72 in
Width over tires, front: 72 in

Diesel engine

Model: TCD 3.6 L4
Cylinders, quantity: 4
Exhaust emission standard: EU Stage V / EPA Tier 4
Exhaust gas after-treatment: DOC-DPF-SCR
Power ISO 14396, rpm: 2,000 rpm
Power ISO 14396, HP: 115.6 HP
Power ISO 14396, kW: 85 kW
Power SAE J1349, rpm: 2,000 rpm
Power SAE J1349, HP: 113.9 hp
Power SAE J1349, kW: 85 kW

Travel drive

Regulation, infinitely variable: HAMMTRONIC
Speed, infinitely variable: 0,0-11,8
Climbing ability, without ballast: 35 %
Climbing ability, with ballast: 25 %

Steering

Steering, type: Two-point steering
Oscillation angle +/-: 2 °

Water-sprinkling system

Water sprinkling, type: Pressure
Fuel tank, capacity: 62.1 gal
Water tank, capacity: 171.7 gal
Additive tank, capacity: 7.4 gal

Tank capacity/filling capacity

Fuel tank, capacity: 62.1 gal
Water tank, capacity: 171.7 gal
Additive tank, capacity: 7.4 gal
AdBlue/SCR reducing agent tank, capacity: 5.3 gal

Sound level

Acoustic power LW(A), measured: 100 db(A)
Sound power level L(WA), guaranteed: 103","promoted_feature_entity_attribute":"Promoted Features|RDO Promise","model":"Model|HP 280i","feature_bullet_1":"Feature 1|Intelligent ballasting concept for flexible adjustment of the machine weight to the application","feature_bullet_2":"Feature 2|Seat-operating unit can be moved and rotated","feature_bullet_3":"Feature 3|High compaction and surface quality due to even weight distribution and tire overlap of the front and rear wheel pairs","feature_bullet_4":"Feature 4|Excellent view of tires, machine and construction site"}
