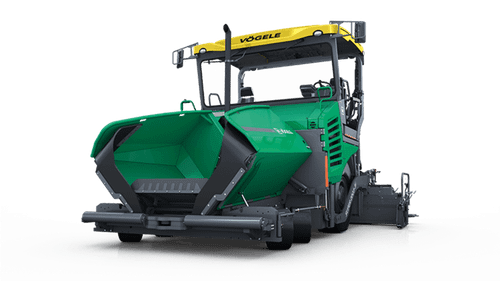

The powerful Highway Class wheeled paver – A true SUPER paver. With the SUPER 2003-3i, VÖGELE has now developed an entirely new paver for the North American market. The wheeled paver is designed primarily for use in highway construction and large-scale commercial applications, which are all about power and productivity. With a powerful, 6-cylinder engine and high-output hydraulic drives, the paver is fully equipped for these jobs.
{"brochure_or_stock":"Availability|Available for Order","promoted_feature_entity_attribute":"Promoted Features|RDO Promise","sku":"SKU|SUPER_2003-3i","model":"Model|SUPER 2003-3i","product_brochure_url":"Product Brochure PDF URL|https://www.wirtgen-group.com/binary/full/o4613v89_SUPER_20033i_2724901_mPW_0319.pdf","spec_notab_clustered_specs":"Specifications|
Engine Manufacturer: Cummins
Engine Type: QSB 6.7 - C250
Engine Exhaust emissions standard: European exhaust emissions standard 4, US standard EPA Tier 4f
Engine Exhaust emissions after-treatment: DOC, SCR
Engine ECO mode output: 224 hp / 1,700 rpm
Engine Nominal output: 250 hp / 2,000 rpm
Fuel tank: 85 Imp.gal
Traction drive Option: 2 rear and 2 front wheels (6x4)
Traction drive Option: 2 rear and 4 front wheels (6x6)
Traction drive Standard: 2 rear wheels (6x2)
Rear wheels Version: 2, pneumatic, tubeless
Rear wheels Tire size, rear wheels: 445/95R25
Front wheels Version: 4, mounted on bogies
Front wheels Tire equipment: Elastic solid rubber tires
Front wheels Tire size, front wheels: 540/300–390
Speeds Paving speed (up to): 250 fpm
Speeds Travel speed (up to): 12.5 mph
Brakes Service brake: generously-dimensioned multiple-disk brakes operated by foot pedal, maintenance-free
Brakes Parking brake: spring-loaded multiple-disk brake, maintenance-free
Brakes Auxiliary brake: hydrostatic brake
Steering: hydraulic
Push-rollers Positions: can be adjusted in a forward direction by 3 or 6 in
Conveyors Version: with replaceable feeder bars, direction of conveyor temporarily reversible
Conveyors Drive: separate hydraulic drives, proportional control
Augers Number: 2
Augers Version: with replaceable auger blades, reversible direction of rotation
Augers Drive: separate hydraulic drives, proportional control
Augers Speed (up to): 130 rpm
Augers Height: infinitely variable
Augers Standard height: hydraulically adjustable by 6 in
Lubrication: centralized lubrication system, electrically-driven grease pump
Screed heating: electric, thermostat-controlled
Power supply: three-phase AC generator
Length:
"}
Drive
Engine Version: liquid-cooled 6-cylinder diesel engineEngine Manufacturer: Cummins
Engine Type: QSB 6.7 - C250
Engine Exhaust emissions standard: European exhaust emissions standard 4, US standard EPA Tier 4f
Engine Exhaust emissions after-treatment: DOC, SCR
Engine ECO mode output: 224 hp / 1,700 rpm
Engine Nominal output: 250 hp / 2,000 rpm
Fuel tank: 85 Imp.gal
Undercarriage
Traction drive Version: Separate hydraulic drivesTraction drive Option: 2 rear and 2 front wheels (6x4)
Traction drive Option: 2 rear and 4 front wheels (6x6)
Traction drive Standard: 2 rear wheels (6x2)
Rear wheels Version: 2, pneumatic, tubeless
Rear wheels Tire size, rear wheels: 445/95R25
Front wheels Version: 4, mounted on bogies
Front wheels Tire equipment: Elastic solid rubber tires
Front wheels Tire size, front wheels: 540/300–390
Speeds Paving speed (up to): 250 fpm
Speeds Travel speed (up to): 12.5 mph
Brakes Service brake: generously-dimensioned multiple-disk brakes operated by foot pedal, maintenance-free
Brakes Parking brake: spring-loaded multiple-disk brake, maintenance-free
Brakes Auxiliary brake: hydrostatic brake
Steering: hydraulic
Material hopper
Push-rollers Standard: oscillatingPush-rollers Positions: can be adjusted in a forward direction by 3 or 6 in
Conveyors and augers
Conveyors Number: 2Conveyors Version: with replaceable feeder bars, direction of conveyor temporarily reversible
Conveyors Drive: separate hydraulic drives, proportional control
Augers Number: 2
Augers Version: with replaceable auger blades, reversible direction of rotation
Augers Drive: separate hydraulic drives, proportional control
Augers Speed (up to): 130 rpm
Augers Height: infinitely variable
Augers Standard height: hydraulically adjustable by 6 in
Lubrication: centralized lubrication system, electrically-driven grease pump
Screed
Screed:| Type | Basic width | Maximum width | Compacting systems |
| VF 600 | 10 ft | 25 ft 5 in | V |
| VR 600 | 10 ft | 23 ft 11 in | V |
| AB 600 | 9 ft 10 in | 24 ft 7 in | TV |
Power supply: three-phase AC generator
Dimensions and weights
Operating weight:| Screed | Total weight |
| VR 600 | 49,160 lbs |
| VF 600 | 48,280 lbs |
| AB 600 TV | 49,420 lbs |
| Screed | Total length |
| VR 600 | 22 ft 6 in |
| VF 600 | 21 ft 6 in |
| AB 600 TV | 21 ft 9 in |
