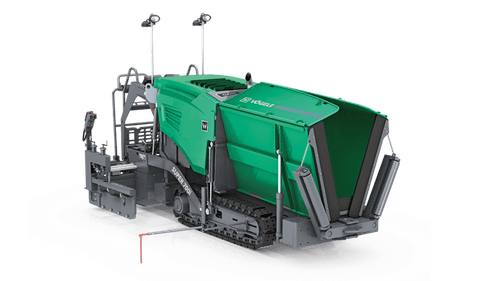

Great things come in small packages. Thanks to its compact design, variable paving width and high performance, the SUPER 700i is the ideal mini paver for surfacing footpaths and cycle paths, as well as for minor paving jobs and pavement repairs. Its excellent value for money and particularly simple operating concept make the SUPER 700i an ideal partner for landscaping contractors, as well as for municipal authorities.
{"brochure_or_stock":"Availability|Available for Order","promoted_feature_entity_attribute":"Promoted Features|RDO Promise","sku":"SKU|SUPER_700i","model":"Model|SUPER 700i","spec_notab_clustered_specs":"Specifications|
Engine Manufacturer: Deutz
Engine Type: TCD 2.9 L4
Engine Exhaust emissions standard: European exhaust emissions standard V, US standard EPA Tier 4f
Engine Exhaust emissions after-treatment: DOC, DPF
Engine ECO mode output: 72 hp / 1,800 rpm
Engine Nominal output: 74 hp / 2,200 rpm
Fuel tank: 21 Imp.gal
Emission data Guaranteed sound power level LWA: 104 db(A)
Emission data Sound pressure level LPA at the operator stations (≤): 85 db(A)
Undercarriage Ground contact: 1,500 mm x 180 mm
Undercarriage Traction drive crawler tracks: electronically controlled separate hydraulic drive provided for each crawler track
Undercarriage Lubrication of track rollers: lifetime
Undercarriage Track tension adjuster: spring assembly
Speeds Paving speed (up to): 98 fpm
Speeds Travel speed (up to): 2.24 mph
Push-rollers Positions: can be adjusted in a forward direction by 4 in and to the left by 20 in
Conveyors Version: with replaceable feeder bars, direction of conveyor temporarily reversible
Conveyors Drive: separate hydraulic drives, proportional control
Augers Number: 2
Augers Version: auger rotation reversible, mounted overhung
Augers Drive: separate hydraulic drives, proportional control
Augers Speed (up to): 70 rpm
Augers Height: infinitely variable
Augers Standard height: mechanically adjustable by 4 in
Screed heating: electric
Power supply: three-phase AC generator
Length:
"}
Drive
Engine Version: liquid-cooled 4-cylinder diesel engineEngine Manufacturer: Deutz
Engine Type: TCD 2.9 L4
Engine Exhaust emissions standard: European exhaust emissions standard V, US standard EPA Tier 4f
Engine Exhaust emissions after-treatment: DOC, DPF
Engine ECO mode output: 72 hp / 1,800 rpm
Engine Nominal output: 74 hp / 2,200 rpm
Fuel tank: 21 Imp.gal
Emission data Guaranteed sound power level LWA: 104 db(A)
Emission data Sound pressure level LPA at the operator stations (≤): 85 db(A)
Undercarriage
Undercarriage Version: provided with rubber padsUndercarriage Ground contact: 1,500 mm x 180 mm
Undercarriage Traction drive crawler tracks: electronically controlled separate hydraulic drive provided for each crawler track
Undercarriage Lubrication of track rollers: lifetime
Undercarriage Track tension adjuster: spring assembly
Speeds Paving speed (up to): 98 fpm
Speeds Travel speed (up to): 2.24 mph
Material hopper
Push-rollers Standard: oscillating, fold up with hopper sidesPush-rollers Positions: can be adjusted in a forward direction by 4 in and to the left by 20 in
Conveyors and augers
Conveyors Number: 1Conveyors Version: with replaceable feeder bars, direction of conveyor temporarily reversible
Conveyors Drive: separate hydraulic drives, proportional control
Augers Number: 2
Augers Version: auger rotation reversible, mounted overhung
Augers Drive: separate hydraulic drives, proportional control
Augers Speed (up to): 70 rpm
Augers Height: infinitely variable
Augers Standard height: mechanically adjustable by 4 in
Screed
Screed:| Type | Basic width | Maximum width | Compacting systems |
| AB 200 | 3 ft 7 in | 10 ft 6 in | V |
| AB 220 | 3 ft 11 in | 10 ft 6 in | V |
Power supply: three-phase AC generator
Dimensions and weights
Operating weight:| Screed | Total weight |
| AB 200 V | 14,330 lbs |
| AB 220 V | 14,550 lbs |
| Screed | Total length |
| AB 200 V | 14 ft 5 in |
| AB 220 V | 14 ft 5 in |
